Sometimes you’re the windshield and sometimes you’re the bug—a phrase many of us have heard and experienced. It’s inevitable. The idea is to be the windshield as much as possible. Shane from Cottman Transmissions had a helluva day but in the end, he was the windshield.
In his shop he had a 2016 Explorer using the 6F50 transaxle, sporting a P193F code for an intermittent vehicle speed signal. The pinpoint test Ford provides for this code are step-by-step instructions on checking the power, ground and signal wires this hall effect output speed sensor uses inside the transmission. These wires go to the solenoid body lead frame. The circuits then pass through the lead frame to the harness connector going to the PCM. The Pinpoint tests are looking for bad connections, short to ground, short to power or open circuits.
If a wiggle test and the internal and external wires pass their inspection, the sensor is replaced. And this is just what Shane did, yet the problem persisted. Since new does not necessarily mean good, another sensor was installed along with a solenoid body lead frame. This, too, did not resolve the problem.

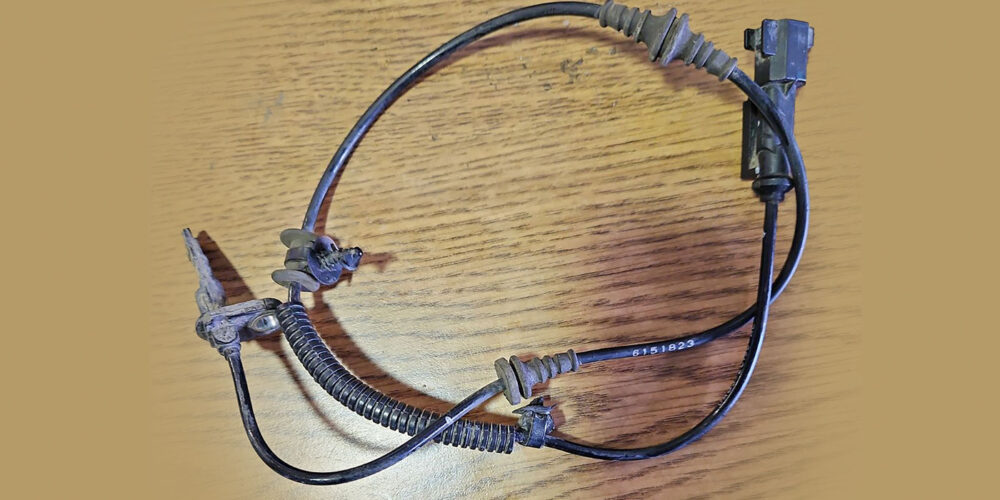

At this point Shane took time to scan through different modules viewing their PIDs. When he got into the ABS system, he saw the right rear wheel speed stuck at 158 MPH – even at a stop. He decided to unplug the left rear wheel speed sensor to see what its PID would do. And when he did, it went to 158 MPH as well. This apparently is a default setting when there is an open circuit. After replacing the right rear wheel speed sensor (see figure 1, below), his problem was resolved.
The reason for the right rear wheel speed being the offending sensor is that the PCM uses the OSS RPM signal from the transmission, and the wheel speed signals from the ABS to calculate vehicle speed. With this sensor malfunctioning, it affected the PCM’s vehicle speed calculation, revealing itself as an intermittent signal loss. When P193F is set, there needs to be a companion code set with it – either an OSS code or a wheel speed sensor code. With this wheel speed sensor not coding like it should have, it made this a bit more challenging for Shane to resolve.
Read the rest of this article and see how Shane handled his day in Transmission Digest by clicking the link below.
This article was written by Wayne Colonna.
